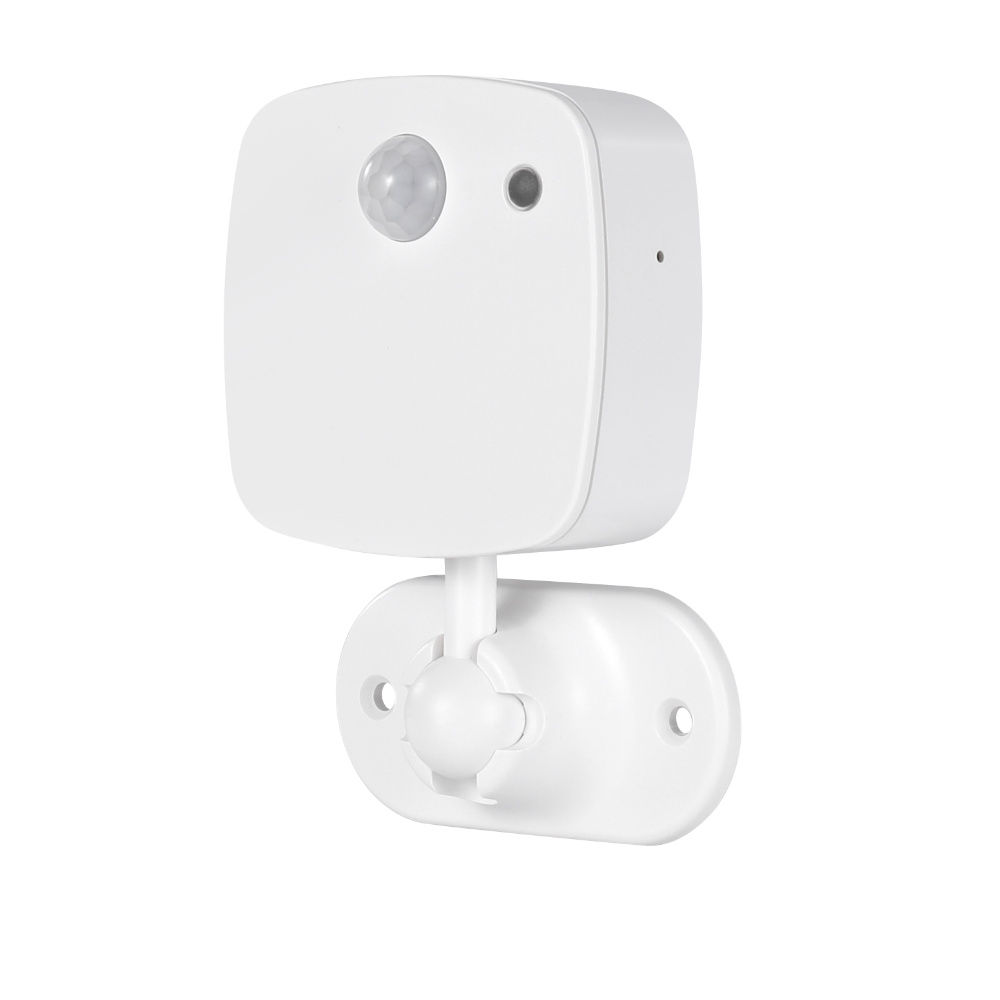

mmWave and PIR Human Presence Sensor

Made For ESPHome

Model:PS02C3
Input:DC 5V 1A Type-C
Wi-Fi Type:2.4Ghz
Size:44*22*72mm
Working humidity: 5~95%RH
Operating temperature: 0?C~+40?C
Radar Frequency:24Ghz(ISM)

Features:
Integrated Luminance Sensor
Build In CH340C serial chip, you can flash your firmware directly
Built-in ESP32C3 chip
Radar sensitivity and detection distance are adjustable.
The product has human presence, micro-motion, and human motion detection capabilities.
It can detect the presence or absence of individuals within the designated area and their movements.

GPIO
Radar Output:GPIO4
Pir Output:GPIO3
Radar TX:GPIO8
Radar RX:GPIO5
LED:GPIO2
Button:GPIO9
BH1750 SDA GPIO18
BH1750 SCL GPIO19

Simple automation: use Occupancy as a trigger, trigger automation to make your lights turn on

Installation Precautions:

Choose a suitable installation location away from air conditioners, curtains, fans, plants, etc. to avoid interference.
Avoid direct beam irradiation on the ground, walls or doors to minimize reflections and indirect detections.
Configure appropriate detection distance, sensitivity and delay time to reduce interference from objects.
Keep the sensor surface clean and free from dust and obstacles.
Ensure the sensor has enough space around it for proper air circulation.



Product Highlights
Human Presence Sensor Made For ESPHome is a sensor product made for ESPHome and Home Assistant. It helps Home Assistant automations respond to environmental data, presence, or room conditions.
Ideal For
Environmental sensing
Presence or room automation
Local Home Assistant monitoring
Compatibility
Designed for local smart home use with Home Assistant. Products marked as Made For ESPHome use the correct Made For ESPHome compatibility wording and are intended for ESPHome-based local control.
