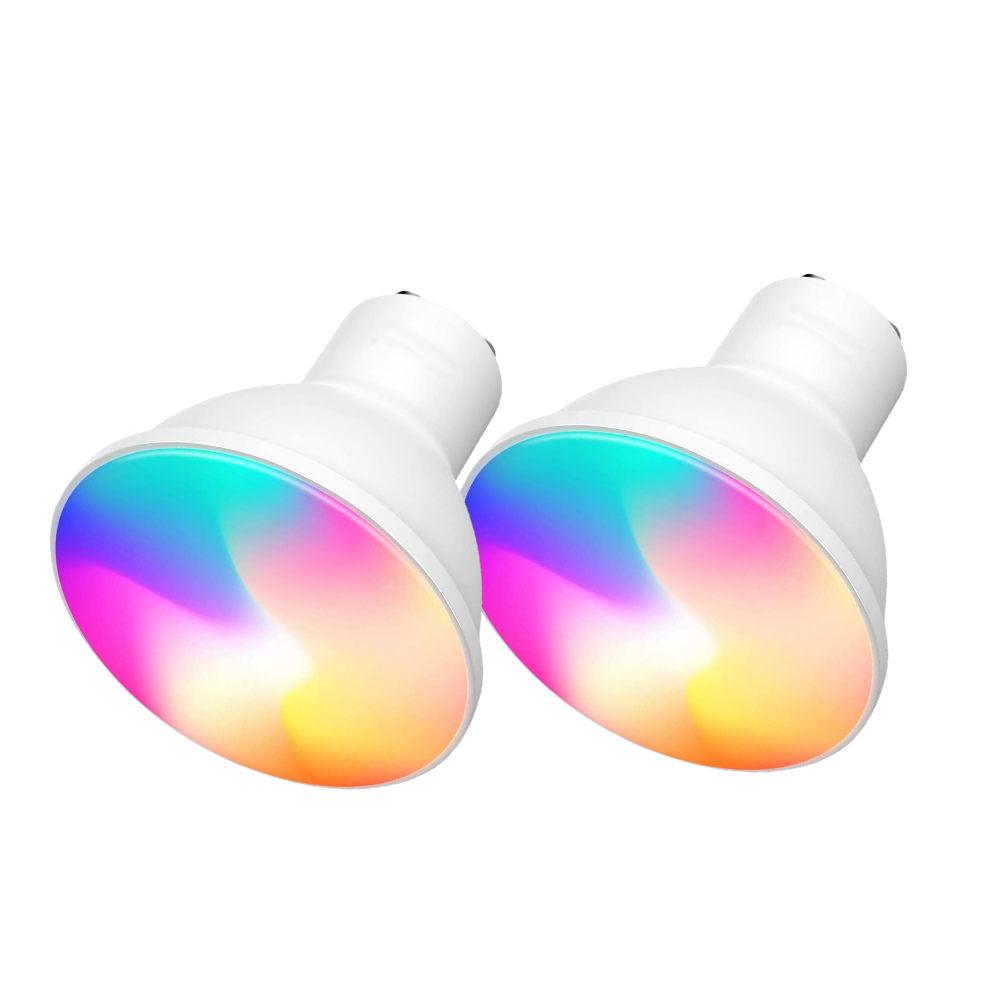

Pre Flashed ESPHome  WiFi Smart Bulb



Pre configed IOs plug and play

Pre flashed before assembling

Build in ESP8285 chip with 2M flash



Yaml File Download:

https://github.com/athom-tech/athom-configs/blob/main/athom-rgbww-light.yaml



  • Color: RGB+Warm+Cold White
  • Color Temperature: 3000-6000K
  • Brightness: 300 lumens
  • Voltage: 110V~240V
  • Power: 4.5W
  • Base:  GU10
  • Material: Aluminium+Plastic
  • Working Temperature: -25°C~65°C
  • Size: 60x60x115 mm
  • Wireless: WiFi 802.11/b/g/n
  • Control Mode: APP/Voice/Manual
  • Certification: CE, RoHS





GPIOs:



GPIO#Component
GPIO0None
GPIO1None
GPIO2None
GPIO3None
GPIO4PWM1
GPIO5PWM4
GPIO9None
GPIO10None
GPIO12PWM2
GPIO13PWM5
GPIO14PWM3
GPIO15None
GPIO16None
FLAGNone



Danger:

Open sources firmware has no control of power supply , if you maximum all channel at the same time, it will highly possible damage the bulb and we will not provide warranty in such case.

GU10 RGBCW for ESPHome

Artikelnummer: LB10-5W-ESP-1
$15.50 Standardpreis
$11.63Sale-Preis
